Conveyor Belt

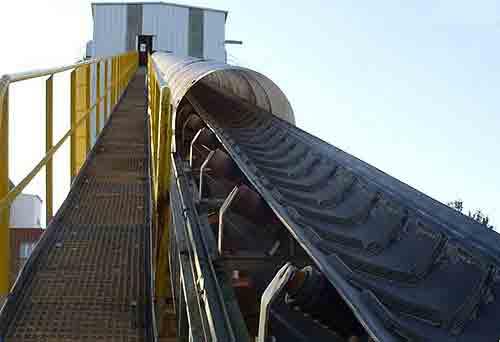

A conveyor belt is the carrying medium of a belt conveyor system (often shortened to belt conveyor). A belt conveyor system is one of many types of conveyor systems. A belt conveyor system consists of two or more pulleys (sometimes referred to as drums), with an endless loop of carrying medium—the conveyor belt—that rotates about them. One or both of the pulleys are powered, moving the belt and the material on the belt forward. The powered pulley is called the drive pulley while the unpowered pulley is called the idler pulley. There are two main industrial classes of belt conveyors; Those in general material handling such as those moving boxes along inside a factory and bulk material handling such as those used to transport large volumes of resources and agricultural materials, such as grain, salt, coal, ore, sand, overburden and more.

Grade of Belts

Conveyor Belt

N 17 :

Specially Compounded rubber cover grade recommended for handling moderately abrasive matarial. Conforms to the maximum abrasion loss value specified for Grade N in DIN 22102 Belt made with this cover grade conform to IS 1891 Pt

End Cutting Scrap

M 24 :

Specially Compounded rubber cover recommended for Superior resistance to cutting & gouging. Conforms to maximum abrasion loss value specified for grade Min DIN 22102 Belts made with this cover grade conform to IS 1891 Pt.

End Cutting Scrap

SHR :

Specially Compounded rubber cover grade to provide adequate heat resistace for handling material temperatures over 65°c & upto 150°c for coarse & 125°c for fine materials The belts made with this cover grade conform to IS 1891 Pt Il for HR Type T-2 Grade.

End Cutting Scrap

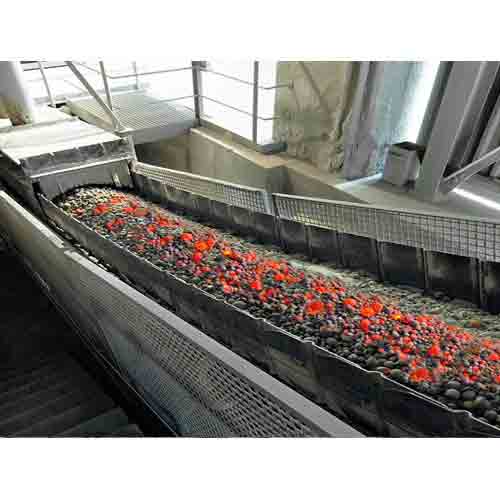

HR :

The Soniya Enterprises of conveyor belts was created in order to meet the growing requirements for heat-resistant conveyor belts. It is based on many years of experience with conveying hot bulk materials and practically oriented testing procedures. Soniya Enterprises used the latest technology in the field of polymeric materials when developing the program of Soniya Enterprises conveyor belts.
Soniya Enterprises conveyor belts are used for a large number of conveyed materials like cement, slag, ash, moulding sand, etc.
Soniya Enterprises ensures unproblematic transport at continuous temperatures of up to 200°C with short-term peaks that are considerably higher.Soniya Enterprises conveyor belts can be supplied as single-ply, two-ply and multiply belts.
Soniya Enterprises can also be used as a steel-cord belt for conveyance over great distances. The belt splices for Soniya Enterprises can be made with Soniya Enterprises splicing materials or with commercial quality materials that are sufficiently resistant to high temperatures.

End Cutting Scrap

UHR 200 :

Specially Compounded rubber cover grade provides excellent heat resistance & moderate abrasion wear rasistance characteristic & is recommended for material temperature upto 200°c for coarse & 180°c for fine materials

End Cutting Scrap

OR :

Specially Compounded rubber cover grade with blended synthetic rubber compounds recommended for giving resistance to mineral, vegetable & animal oils Belts made with this cover grade conform to IS 1891 Pt III

End Cutting Scrap

CMR :

Specially Cornpounded rubber cover grade recommended for handling chemically active material with or without oil coating, like ANT, Suphla, Potash etc.

End Cutting Scrap

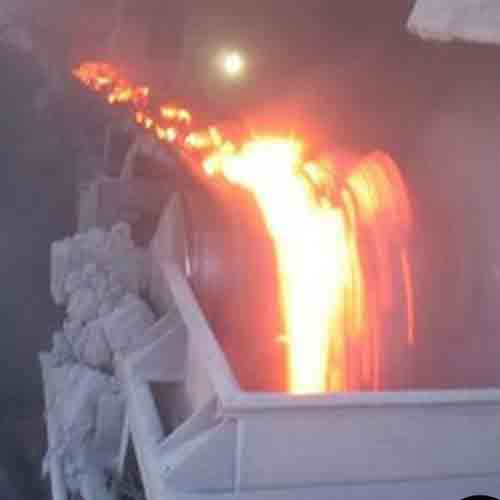

FR :

Specially Compounded rubber cover grade to meet the growing demand for fire resistant conveyor belting conforms to Canadian Bureau of Mines specifications CAN/CSA M422/M/87 IS 1891 PUV ISO: 340

Belt Type Maximum Recommended Working Tension kN/m Nominal Carcass thick-ness(mm) Carcass Weight Thick (kg/m2) Pulley Diameters Min Belt width(mm) Maximum Belt width for Satisfactory Load Support.(mm)
A(Head Pulley) B(Tall Pulley) C(Snub Pulley)
Material Weight in Tons/m3
< 0.75 0.75-1.5 1.5-2.5 2.5-3.2
315/3 31.5 3.0 3.72 400 315 250 400 1000 800 650 -
400/3 40 3.2 3.97 400 315 250 400 1200 1000 800 -
400/4 40 4.2 5.21 500 400 315 650 1400 1000 1000 -
500/3 50 3.6 4.46 500 400 315 500 1200 1000 800 -
500/4 50 4.4 5.46 500 400 315 650 1600 1600 1200 2000
500/5 50 5.3 6.57 630 500 400 650 1600 1600 1200 2000
630/3 63 4.0 4.96 500 400 315 500 1400 1400 1000 2000
630/4 63 4.9 6.08 630 500 400  650 1600 1400 1200 2000
630/5 63 5.6 6.94 630 500 400 800 2000 2000 1600 2000
800/3 80 4.5 5.85 500 400 315 800 1600 2000 1800 2000
800/4 80 5.5 6.82 630 500 400 1000 2000 2000 2000 2000
800/5 80 6.5 6.94 800 630 500 1000 2000 2000 2000 2000
1000/4 100 6.2 7.96 800 630 500 1000 2000 2000 2000 2000
1000/5 100 7.0 8.68 800 630 500 1000 2000 2000 2000 2000
1000/6 100 7.2 9.42 1000 800 630 1000 2000 2000 2000 2000
1250/4 125 7.2 8.93 800 630 500 1000 2000 2000 2000 2000
1250/5 125 7.9 9.83 1000 800 630 1000 2000 2000 2000 2000
1250/6 125 8.5 10.54 1000 800 630 1000 2000 2000 2000 2000
1400/4 140 8.6 10.66 1000 800 630 1200 2000 2000 2000 2000
1600/5 160 9.1 11.28 1000 800 630 1200 2000 2000 2000 2000
1600/5 160 9.6 11.90 1250 1000 800 1200 2000 2000 2000 2000
1800/5 180 10.9 13.52 1250 1000 800 1200 2000 2000 2000 2000
1800/6 180 12.1 15.00 1400 1250 800 1200 2000 2000 2000 2000
2000/5 200 11.0 13.64 1250 1000 800 1200 2000 2000 2000 2000
2000/6 200 12.1 15.00 1400 1250 800 1200 2000 2000 2000 2000
